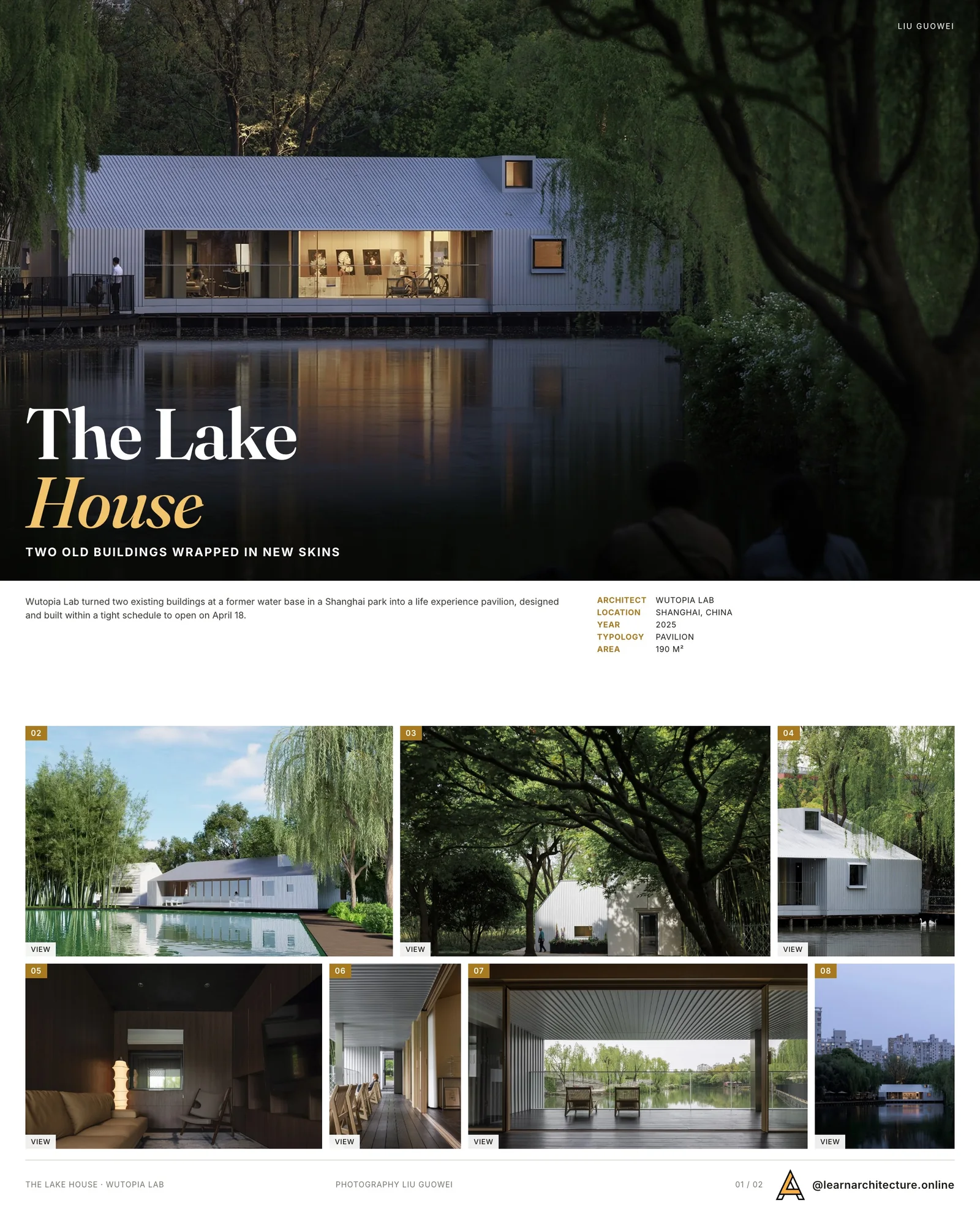

In the heart of a serene urban park by the bay, The Lake House emerges not as a singular structure but as a spatial narrative—a layered, poetic journey of architecture, memory, and material storytelling. Designed by Wutopia Lab, led by Chief Architect YU Ting, the 190-square-meter pavilion exemplifies a radical rethinking of fast-build architecture through rigorous integration and deeply humanistic design.
Commissioned under extraordinary constraints—with final site approval on February 28 and a public opening scheduled for April 18—the project was a feat of rapid ideation, precision coordination, and adaptive creativity. The result is a multi-sensory experience, both visually engaging and emotionally resonant, born from a spirit of controlled improvisation and ecological sensitivity.
Site Selection and Constraints: Design Within Limits
The chosen location—a former water base nestled beside the bay—came with its own set of immovable boundaries. The park required that the design retain two existing building structures and preserve every millimeter of surrounding greenery, including two trees growing directly adjacent to the façades. In addition, the client requested the reuse of ceramic curtain wall panels from prior residential developments.
Rather than viewing these constraints as limitations, Wutopia Lab turned them into the creative drivers of the design, weaving the pavilion’s identity around what could not be changed. The result is a delicately balanced composition, where architectural intervention becomes a frame for nature, memory, and material experimentation.
The “House Within a House” Strategy
YU Ting responded immediately with a hallmark design move: the “house within a house” concept. Each of the two inherited structures was wrapped in distinct architectural skins—a metal shell functioning as a climate barrier, and a ceramic façade acting as a visual veil. This dual-envelope approach enabled the project to preserve the original insulation and waterproofing of the existing structures while introducing a striking new material language.
Beyond their visual roles, the layers echo the design’s conceptual core—an interplay of permanence and transformation, of old and new coexisting in quiet tension. The metal defines the thermal envelope; the ceramics—tactile, shimmering, and pearlescent—define the pavilion’s emotional register.
Precision, Speed, and Integration: A Model for Fast Architecture
What followed was an extraordinary demonstration of design precision and logistical mastery. Within days of approval, Wutopia Lab implemented its core fast-build strategy, rooted in:
-
Pre-decided Standard Materials – Eliminating the need for customized components.
-
Optimized Workflow – Emphasizing prefabrication and minimizing wet work on-site.
-
Integrated Design Systems – Merging architectural, structural, lighting, signage, and interior design from the outset.
Structural engineer MIAO proposed a unified system using 150×150 mm steel profiles, integrated seamlessly with the façade system. This allowed the building envelope and structural frame to become one continuous system—efficient, coherent, and expressive. Cantilevered bases on sensitive waterfront zones allowed for a minimally invasive foundation and facilitated swift assembly.
Each detail—down to the 20×20 mm decorative aluminum trims spaced precisely at 100 mm—was locked early. By April 14, the main structure was complete. By April 18, the Lake House was open to the public—a stunning testament to how design excellence and time constraints need not be mutually exclusive.
Material Narrative and Zero-Carbon Culture
The Lake House is not merely a building; it is a sensory ecosystem of ideas and materials, composed of ceramic tiles, marine plastic panels, recycled tiles, mushroom leather, and light. These elements form a zero-carbon undercurrent, one that speaks softly yet insistently of sustainability, care, and future-thinking.
The pavilion’s program unfolds as a walkable spatial sequence, defined by horizontal planes of light and shadow. Visitors pass through a series of curated experiences—lobby, exhibition hall, three intimate VIP rooms, colonnade, terrace, café, and boardwalk—woven together by preserved trees and vertical gardens. Inside and out dissolve into one another. Direction is gently disoriented—not to confuse, but to delight.
In VIP Room 1, a large framed opening becomes a living painting, a still image animated by light, water, and the gentle movement of trees. Overhead, a skylight—originally conceived to house a small lookout stair—remains as a subtle homage to Shanghai’s old tiger windows. Improvisation, here, becomes poetry.
A Moment of Quiet Beauty
On opening day, an elderly visitor paused before the ceramic-clad wall. He reached out, gently touched its pearlescent surface, and smiled. It is in that moment that the true purpose of The Lake House becomes clear—not as a spectacle, but as a space for memory, stillness, and encounter.
Wutopia Lab’s Lake House is a model for a new kind of architecture: fast, precise, low-carbon—and deeply human. It demonstrates how architecture, when guided by constraint and care, can become not just a solution, but a story.
Photography: Guowei Liu
