Understanding Schematic Design in Architecture

What Is Schematic Design?

Schematic Design acts as the foundational phase in architectural planning, where an architect converts the client’s conceptual ideas into initial sketches and models. This phase includes extensive discussions with the client to define the project’s scope, objectives, and desired functionality. The architect then assesses the project site and gathers necessary data, which guide the creation of preliminary design proposals. These proposals visually interpret the client’s ideas, offering multiple design directions and solutions. Schematic Design allows adjustments before more detailed plans are developed, ensuring that the architect and client are aligned in their visions for the project.

Importance in the Architectural Design Phases

Schematic Design holds significant importance as it sets the tone for all subsequent phases of architectural design. It provides the first tangible glimpse of the project, laying out the overall form and spatial relationships of the building. This phase not only influences aesthetic and functional aspects but also impacts the strategic planning of technical solutions and the allocation of resources. It’s crucial for establishing a clear and shared understanding of project goals between the architect and the client. Consequently, the accuracy and thoroughness of the Schematic Design phase can determine the project’s success, affecting decision-making processes, costs, and timeline management throughout the life cycle of the construction project.

Unlocking Schematic Design in Architecture: From Concepts to Plans

Key Components of Schematic Design

Site Analysis and Planning

Site analysis stands as the foundational step in the schematic design process, where we assess the physical conditions of a proposed site to understand its limitations and potentials. This analysis includes evaluating topography, climate, existing structures, local regulations, and infrastructural accessibility. Effective site planning then integrates these elements to propose the best possible usage of space, ensuring that the design aligns not only with client expectations but also with environmental sustainability and regulatory compliance. This stage is critical because it informs all subsequent design decisions, potentially saving time and resources by identifying any challenges early in the project lifecycle.

Initial Concept Drawings and Sketches

After completing a thorough site analysis, the next phase involves creating initial concept drawings and sketches. These are preliminary representations that provide a visual outline of the project’s scale, layout, and relations between different spaces. Sketches are typically freehand, offering a quick way to explore ideas and discuss them with the client before progressing to more detailed drawings. They serve as the first tangible outputs of the architectural ideas that were shaped by the client’s needs and the site’s characteristics. This step is crucial in transforming abstract concepts into concrete plans that can be further refined.

The Role of Visualization Tools

Visualization tools play an indispensable role in schematic design by enhancing the communication between architects and clients. These tools include digital renderings, 3D models, and virtual reality simulations that allow stakeholders to visualize the proposed design in a realistic and immersive environment. By using these advanced tools, clients can better understand and interact with the design, leading to more informed feedback and effective decision-making. Visualization not only bridges the gap between conceptual design and physical reality but also facilitates necessary adjustments before the finalization of plans, thereby streamlining the design refinement process.

Unlocking Schematic Design in Architecture: From Concepts to Plans

The Schematic Design Process

Developing Concepts

In the schematic design phase, our main focus is on transforming clients’ ideas into workable concepts. This involves creating a series of preliminary layouts that reflect the project’s objectives and constraints. We start by sketching different configurations that explore the spatial relationships and functional arrangements of the proposed building. These sketches, often referred to as bubble diagrams, are not detailed but provide a clear guideline of the spatial hierarchy and program distribution. As we refine these sketches, they evolve into more detailed floor plans and site plans that incorporate essential elements like dimensions and equipment placements.

Consulting with Stakeholders

Effective communication with all project stakeholders during the schematic design phase is vital. This includes regular meetings with clients, consultants, and other involved parties. During these discussions, we present our conceptual drawings and gather feedback to understand each stakeholder’s vision and requirements better. We also consult with structural, mechanical, and civil engineers early in this phase to integrate their expert insights into the project. This collaborative approach ensures that potential issues are identified early, thereby streamlining the design process and aligning the project with the outlined objectives and budget constraints.

Choosing and Refining a Design

Once we have developed multiple schematic options, the next step is to evaluate these designs with the client. This involves detailed discussions to weigh the pros and cons of each option based on aesthetics, functionality, cost, and compliance with relevant regulations. Upon selecting the most promising design, we proceed to refine this concept. This refinement process involves adjusting the design to better fit the client’s needs, incorporating detailed feedback, and optimizing the layout and specifications to enhance the overall functionality and cost-efficiency of the project. The chosen schematic design then serves as the foundation for the subsequent design development phase, where further details are added, and the project starts to take a more definitive shape.

Unlocking Schematic Design in Architecture: From Concepts to Plans

Schematic Design Documents

In the schematic design phase, the creation of pertinent documents is essential. These documents encapsulate the initial concepts into representations that are comprehensible for both clients and design teams. Our focus here is to elucidate the common types of documents and dive into specifics like site plans and elevations crucial for the architectural endeavor.

Common Types of Documents

The schematic design stage produces several key documents that aid in transforming a concept into a preliminary physical layout. These include:

  • Site Plans: Display the proposed location, orientation, and relationships within the premises.
  • Floor Plans: Illustrate the layout of each building level, showing walls, doors, and other elements.
  • Elevations: Provide views of the building from specific vantage points, depicting the exterior façade.
  • Sections: Cut through a building to show hidden details of construction.
  • Renderings: Offer three-dimensional visualizations of the space, enhancing the understanding of the project scale and aesthetic.
  • Schematic Reports: Capture the design rationale, including the design approach and how it aligns with client expectations.

These documents collectively function to ensure all stakeholders have a unified understanding of the project scope and design intentions.

Understanding Site Plans and Elevations

Focusing on site plans and elevations, we can better grasp the architectural layout and aesthetic intentions of a project.

Site Plans: These are crucial for visualizing the overall project within the physical environment. They show not only the building but also its relation to surrounding structures and natural elements. Site plans include aspects like landscaping, driveways, and service zones. They help in assessing potential logistical challenges and enable us to plan efficient access and emergency exits.

Elevations: They are essential for understanding the exterior look of the building. Elevations depict the height, materials, and structural elements visible from the outside. This helps in gauging the building’s character and how it blends with or stands out in its environment. By examining elevations, clients can make informed decisions about material choices and exterior finishes.

Through these documents, architects and clients move forward with a detailed and shared vision, paving the way for subsequent phases of architecture projects. Each plan or elevation brings clarity and addresses specific aspects that are crucial for the seamless progression of the project.

Unlocking Schematic Design in Architecture: From Concepts to Plans

Schematic Design vs. Other Design Phases

Comparison with Pre-Design and Design Development

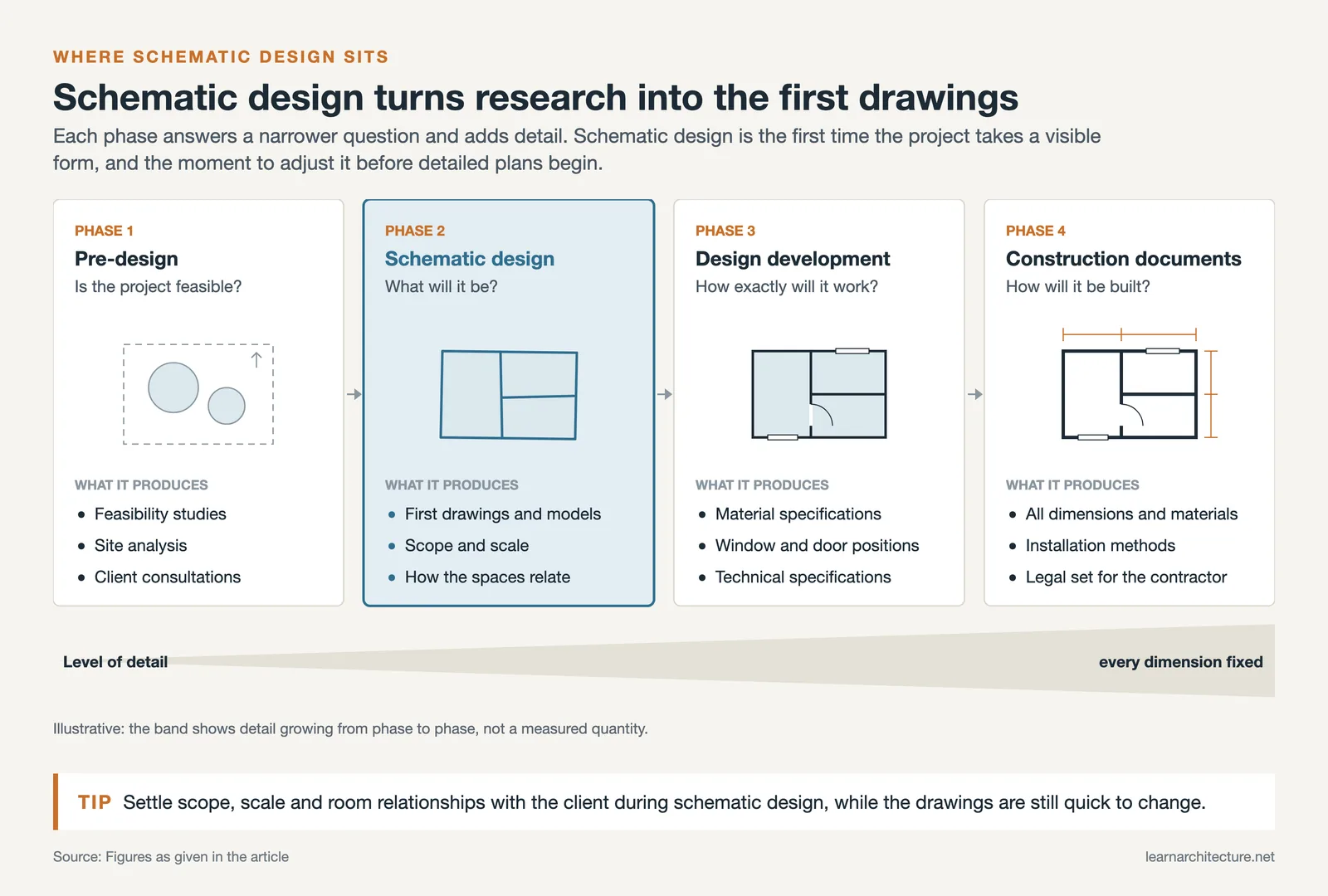

Schematic design serves as a critical bridge between the pre-design phase and design development within architectural projects. During pre-design, the focus is primarily on exploratory activities, such as feasibility studies, site analysis, and general client consultations. These initial stages lay the groundwork for defining the project’s broad parameters without delving into detailed planning.

In contrast, schematic design translates these broad concepts into more concrete, visual forms. This phase involves creating initial drawings and models that depict the basic scope, scale, and relationships of the project components. These documents embody the first iteration of the project’s vision, integrating client needs with functional and aesthetic goals underpinned by preliminary research from the pre-design phase.

Transitioning to the design development phase, the schematic proposals are refined and developed into detailed plans. These plans include technical specifications and construction details essential for actual building. The design development phase deepens the level of detail of each element, ranging from material specifications to the precise locations of windows and doors. This phase solidifies the schematic concepts into blueprints that can guide the subsequent construction.

Transition to Construction Documents

Moving from the design development phase into the construction documents phase, the focus shifts from refining design details to specifying the information necessary for construction. The construction documents compile comprehensive sets of drawings and specifications that convey all necessary information to the contractor to execute the design vision accurately.

At this point in the process, every element of the schematic and design development drawings must be translated into precise, actionable instructions. These documents encompass all dimensions, materials, and installation techniques. They serve as the legal and technical blueprint that ensures the project is built in compliance with building codes, regulations, and client expectations.

This transition marks a significant step, as it represents the final handoff from the conceptualization phases where architects and clients agree on the design, to the practical phase where builders actualize those plans. Our role ensures that the transition between these phases maintains both the design integrity and practical execution details, setting the stage for a successful construction process.

Unlocking Schematic Design in Architecture: From Concepts to Plans


Understanding schematic design in architecture is crucial as it sets the foundation for all subsequent phases of a construction project. After establishing the necessity of schematic design for translating conceptual ideas into detailed plans and creating essential documents like site plans and elevations, it’s evident that this phase is instrumental in maintaining a project’s vision throughout its lifecycle. Schematic designs serve as a bridge, moving a project from the abstract ideas of pre-design to the concrete specifics required in the design development phase.

This phase does not only facilitate the transition of concepts into actionable plans but also ensures that these plans adhere to the clients’ expectations and project requirements. The utility of schematic design extends into the careful planning of spatial relationships, verifying compliance with zoning and environmental regulations, and integrating sustainable features that enhance functionality and efficiency.

As projects evolve into the design development phase, schematic design drawings and reports are refined into comprehensive blueprints. These detailed plans, necessary for construction, include technical specifications and material requirements which are precise enough to ensure accurate project realization. Furthermore, maintaining alignment with the initial schematic vision during this intense detailing process is paramount to achieving architectural coherence and operational efficiency upon project completion.

Subsequently, as projects move into the compilation of construction documents, the thorough groundwork laid during the schematic design phase proves indispensable. These documents represent the culmination of all preceding efforts, embodying the detailed instructions necessary for the smooth execution of the construction phase, ensuring fidelity to the original design intent and paving the way for successful project completion. Through our exploration, we’ve illuminated the critical role schematic design plays in architecture, underpinning the project with clarity, foresight, and adaptability.
